Earthwork Estimating Services
ConstructQuant provides independent commercial earthwork estimating services for grading contractors, site preparation specialists, and commercial general contractors across the United States. We build 3D digital terrain models from civil grading plans and geotechnical boring logs to quantify cut, fill, embankment, topsoil stripping, and structural fill volumes. Our estimates model soil shrink and swell factors, site mass balance, and off-road vs. on-road haul logistics to eliminate financial surprises in earthmoving bids.
What Are Commercial Earthwork Estimating Services?
Commercial earthwork estimating is the scientific quantification, 3D volumetric analysis, and cost modeling of earthmoving operations required to transform existing site topography into proposed design elevations. Regulated under CSI Division 31 20 00, earthwork estimating establishes the volumetric balance between cut (soil excavated) and fill (soil placed and compacted). It accounts for geotechnical state transitions—converting between Bank Cubic Yards (BCY), Loose Cubic Yards (LCY), and Compacted Cubic Yards (CCY)—to determine true import or export dirt requirements.
3D Surface Cut & Fill Modeling
We generate existing ground (EG) and finished grade (FG) triangulated irregular network (TIN) surfaces from civil contours and spot elevations, producing high-resolution cut/fill color heat maps and net volume summaries.
Geotechnical Shrink & Swell Analysis
We convert in-situ bank cubic yards into compacted fill volumes using geotechnical soil boring reports, applying verified expansion factors for rock (20%–40% swell) and compaction factors for clays and silts (10%–18% shrinkage).
Import / Export Balance & Haul Logistics
We calculate whether a project requires off-site borrow fill import or off-site surplus soil export, modeling mass haul diagrams, internal scraper push distances, and highway tri-axle trucking cycle times.
Topsoil & Subgrade Stratification
Our models isolate topsoil stripping depths (typically 4" to 8"), topsoil stockpiles, building pad subgrade over-excavation, lime/cement chemical stabilization, and landscape topsoil respread volumes.

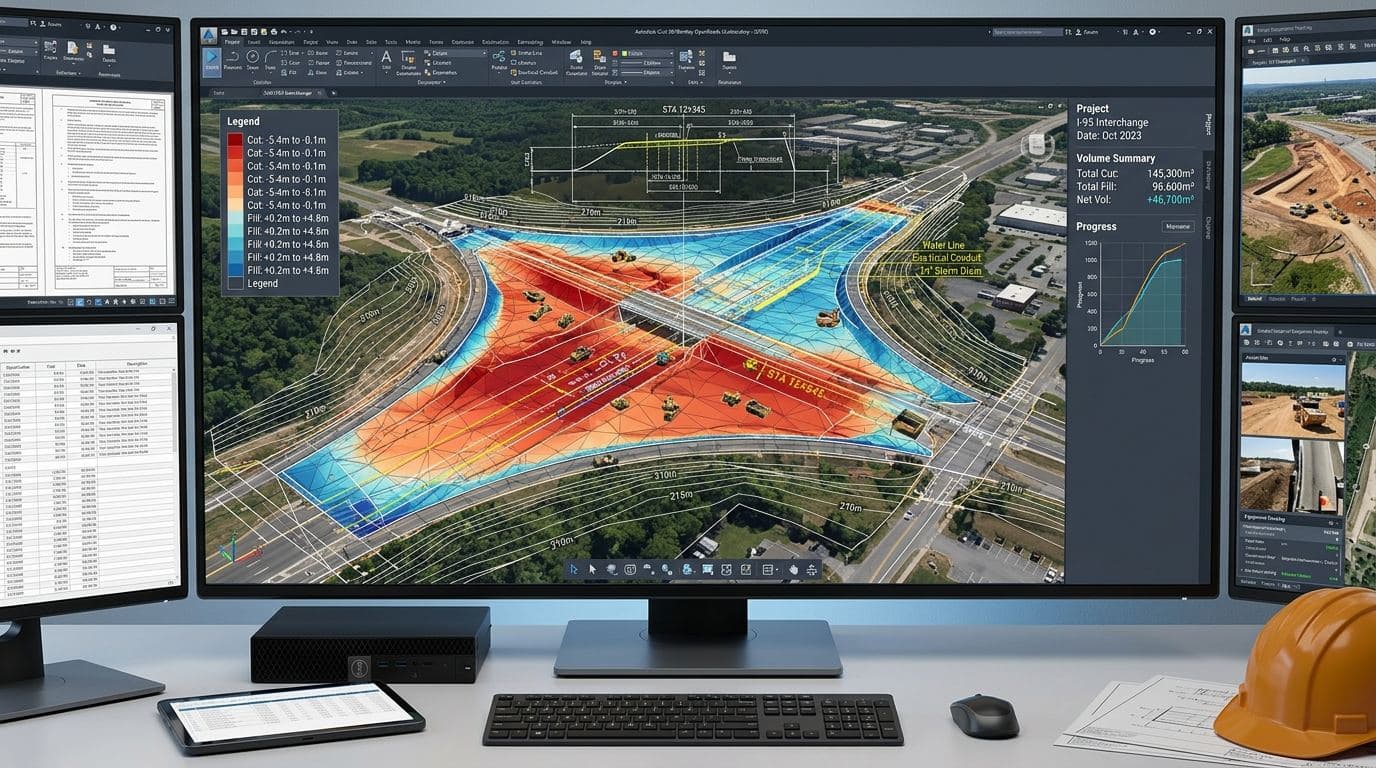

Example: Cut and Fill From a 3D Surface Model
Triangulating digital terrain models, cut/fill heat maps, and geotechnical soil boring stratum cross-sections.
Comprehensive Earthwork Scope Coverage
ConstructQuant models site earthmoving scopes across commercial distribution centers, healthcare campuses, retail developments, and industrial parks.
Mass Cut & Fill Takeoff
- Existing ground (EG) to finished subgrade (FG) 3D surface comparisons
- Raw cut volume calculations in bank cubic yards (BCY)
- Compacted fill embankment volumes in compacted cubic yards (CCY)
- Building pad elevation cuts and structural fill lifts
- Parking lot and truck court subgrade mass grading
- Detention basin and retention pond earth excavation
Topsoil & Stripping
- Site-wide topsoil stripping depth modeling (4", 6", 8", 12")
- Topsoil stockpile location sizing & temporary protection
- Re-spread topsoil calculations across landscaped areas
- Surplus topsoil export volume calculations
- Organic matter stripping & root mat clearing adjustments
- Agricultural soil conditioning & screening allowances
Geotechnical Conversions
- Bank-to-compacted shrinkage factor adjustments (10%–18%)
- In-situ rock swell factor calculations (25%–40% swell)
- Loose cubic yard (LCY) haul truck capacity conversions
- Soil moisture-density relationship modeling (Standard/Modified Proctor)
- Water conditioning gallon requirements for dry soil lifts
- Nuclear density gauge testing passes and quality control
Mass Haul & Logistics
- Mass haul diagram generation for cut-to-fill movement
- Average on-site haul distance tracking (stations / feet)
- Push-scraper vs. articulated off-road dump truck logistics
- Highway tri-axle dump truck cycle times for import/export
- Disposal facility tipping fees for clean soil export
- Haul road construction, maintenance & dust control
Unsuitable Soils & Remediation
- Undercutting of soft, organic, or saturated subgrade soils
- Imported select granular fill replacement volumes
- Lime stabilization (quicklime / hydrated lime slurry tonnage)
- Portland cement soil stabilization & mixing equipment
- Biaxial geogrid reinforcement (Tensar) & separation geotextiles
- Subgrade proof-roll inspection labor and re-rolling passes
Site Dirt Balancing
- Net site earthwork balance calculation (Zero Balance Target)
- Finished floor elevation (FFE) adjustment impact modeling
- Parking lot subgrade depth offset adjustments for pavement sections
- Building pad slab thickness and crushed stone subbase deductions
- Detention pond berm fill vs. pond cut balancing
- Value engineering earthwork optimization recommendations
Earthwork vs. Excavation, Sitework, and Utilities
Separating earthwork volume modeling from physical excavation, civil utilities, and finished sitework.
Earthwork Estimating vs. Excavation Operations
Earthwork Estimating covers the whole-site 3D surface volume model: cut/fill quantities, geotechnical shrink/swell, site dirt balancing, topsoil stripping, and mass embankment compaction. In contrast, Excavation Estimating Services models the physical digging operations: basement mass cuts, foundation footing trenches, trench box shoring, bucket cycle times, rock hammering, and trench backfill.
Earthwork Estimating vs. Sitework Estimating
While earthwork establishes the bulk subgrade elevation, Sitework Estimating Services covers the finished horizontal exterior improvements: crushed stone aggregate base course, asphalt paving, concrete curbs, pedestrian sidewalks, and dumpster enclosure slabs.
Earthwork Estimating vs. Civil Infrastructure
Civil drawings provide the grading plan contours from which earthwork surfaces are modeled. Civil Estimating Services takes earthwork totals and coordinates them with storm drainage pipe networks, sanitary sewer trunklines, water distribution loops, and municipal roadway permits.
Practical Estimating Realities in Commercial Earthwork
Critical geotechnical and mathematical principles that prevent six-figure earthmoving cost overruns on bid day.
The Pavement & Slab Section Subgrade Offset Trap
Civil grading plans display finished surface elevations (top of asphalt, top of concrete slab). If an estimator models earthwork directly to finished surface grade without offsetting for the pavement section (e.g., 4" asphalt + 8" crushed stone base = 12" subgrade drop), the cut volume is under-calculated and fill volume is massively over-calculated. Our 3D models build dedicated subgrade design surfaces factoring true pavement and slab section depths.
Soil Compaction Shrinkage vs. Rock Bulking Swell
10,000 bank cubic yards of in-situ clay when excavated and compacted into an embankment will only yield 8,500 to 9,000 compacted cubic yards (a 10%–15% volume shrinkage). Conversely, solid bedrock when blasted expands by 25% to 40% in volume. Failing to account for these geotechnical conversion factors can turn an apparent "balanced" site into an unexpected 15,000-yard dirt deficit or surplus.
Topsoil Stripping & Respread Geometric Balance
Topsoil stripping creates an initial site-wide cut that cannot be used as structural fill beneath building slabs or roadways due to organic content. Our earthwork takeoffs isolate topsoil stripping volume, calculate required topsoil respread volume across landscape areas, and model the surplus topsoil that must be hauled off-site or dedicated to perimeter screening berms.
Mass Haul Distance & Equipment Fleet Matching
The cost of moving dirt depends directly on haul distance. For hauls under 500 feet, twin-engine push-scrapers or dozer pushes are most economical; for hauls of 1,000 to 3,000 feet across unpaved rough terrain, articulated off-road dump trucks (ADTs) loaded by 50-ton excavators dominate; for off-site export, street-legal tri-axle trucks are required. Our mass haul analysis matches dirt volumes to optimal equipment fleets.
Standard Commercial Earthwork Deliverables
ConstructQuant provides clean, standardized preconstruction documentation tailored for grading contractors, heavy civil estimators, and project executives.
1. Excel Estimate
Comprehensive cost workbook detailing mass cut, fill embankment, topsoil stripping/respread, soil conditioning, equipment operating rates, and machine operator crew wages.
2. Excel Quantity Takeoff
3D volumetric summary report detailing raw cut (BCY), compacted fill (CCY), shrink/swell percentages, net dirt balance (import/export), and area-by-area volume breakdowns.
3. PDF Markups
Color-coded cut and fill heat maps visually highlighting cut depths (red/orange) and fill depths (blue/cyan), cross-sections, and grading boundary limits corresponding to the volume schedule.
4. Bid Summary
Executive overview summarizing total cubic yards moved, earthmoving equipment fleet investment, trucking logistics allowances, and recommended contingency and markup margins.
5. Scope / Assumptions
Technical scope narrative recording geotechnical shrink/swell assumptions, topsoil stripping depths, subgrade offset cross-sections, and specific civil addenda reviewed.
Our 6-Step Earthwork Estimating Workflow
A disciplined mathematical procedure delivering verified 3D surface models and reliable dirt balances.
Plans/Documents
Intake existing topography surveys, proposed civil grading plans, paving sections, and geotechnical soil reports.
Scope Review
Analyze soil boring logs, water table elevations, topsoil stripping specifications, pavement depths, and addenda.
Quantity Takeoff
Build 3D surfaces (EG and subgrade FG), compute cut/fill volumes, apply shrink/swell factors, and determine net import/export.
Pricing
Apply equipment fleet production rates (dozers, scrapers, excavators), off-road fuel, compaction passes, and trucking costs.
QA/QC
QA/QC review checking subgrade offset depth logic, boundary tie-in slopes, and geotechnical factor compliance.
Final Estimate Delivery
Deliver the final bid-ready Excel files, 3D cut/fill PDF markup heat maps, executive bid summary, and scope assumptions document.
Commercial Earthwork Estimating Inquiries
Common preconstruction and technical questions answered for grading subcontractors and commercial developers.
What is the difference between BCY, LCY, and CCY in earthwork?
Bank Cubic Yards (BCY) measures soil in its natural, undisturbed in-situ state before excavation. Loose Cubic Yards (LCY) measures soil after excavation, which expands due to air voids and governs dump truck load capacities. Compacted Cubic Yards (CCY) measures soil after it has been placed in lifts, conditioned with water, and compacted by heavy rollers into an engineered fill embankment.
How do you generate 3D cut and fill surface models?
We import digital civil CAD drawing files or vector PDFs containing existing contours and proposed design elevations. We build two discrete 3D Triangulated Irregular Network (TIN) surface meshes: an Existing Ground (EG) surface and a Finished Subgrade (FG) surface (offsetting for pavement and floor slab depths). The volumetric difference between these two surfaces produces the exact cut and fill quantities.
What is your turnaround time for an earthwork cut and fill takeoff?
Turnaround is project-dependent. Timelines depend on site acreage, topographic contour density, the availability of vector CAD files vs. flat PDFs, and whether geotechnical stratification layers (rock, water table) must be modeled. We establish confirmed delivery milestones upon review of project plans.
Can you help balance a site to avoid costly off-site dirt trucking?
Yes. In our value engineering analysis, we can determine the exact elevation adjustment needed to achieve a "Zero Dirt Balance." For instance, raising or lowering a 100,000 sq ft building pad by just 6 inches can eliminate 1,800 truckloads of off-site export, saving developers significant trucking and disposal fees.
Integrated Preconstruction Estimating Services
Connect earthwork cut and fill takeoffs with adjacent excavation, sitework, and civil infrastructure packages.
Excavation Estimating
Basement mass excavation, foundation footing cuts, trench box shoring, and cycle time production rates.
Sitework Estimating
Finished site improvements, subgrade preparation, aggregate base stone, asphalt paving, and concrete curbs.
Civil Estimating
Storm drainage networks, sanitary sewer trunklines, water distribution mains, and retention basin engineering.
Quantity Takeoff
Detailed material measurement with color-coded plan audit trails across all commercial construction trades.
Ready to Verify Your Next Earthwork Cut & Fill Takeoff?
Submit your civil grading drawings, existing topography files, and geotechnical soil reports to ConstructQuant. Receive a 3D cut/fill surface takeoff and earthmoving cost model structured for competitive commercial bidding.
