Insulation Estimating Services
ConstructQuant provides project-based commercial insulation estimating services for thermal envelope subcontractors, mechanical insulation specialists, and commercial general contractors across the United States. We examine architectural wall sections, exterior envelope details, mechanical piping schematics, ductwork layouts, and acoustic specifications to generate line-item takeoffs. Our estimates quantify fiberglass batts, mineral wool SAFB, exterior continuous rigid board, spray polyurethane foam, duct wrap/liner, and piping insulation with R-value compliance and installer crew productivity modeling.
What Are Commercial Insulation Estimating Services?
Commercial insulation estimating is the specialized quantification and cost modeling of thermal barriers, acoustic dampeners, and mechanical thermal wraps across a commercial facility. The trade spans two primary domains: Building Envelope & Architectural Insulation (CSI Division 07 21 00) covering cavity batts, continuous exterior rigid polyiso, and mineral wool safing; and Mechanical Insulation (CSI Divisions 22 07 00 & 23 07 00) covering supply/return duct wrap, internal duct liner, preformed fiberglass pipe insulation, and elastomeric closed-cell tubing.
Thermal & Acoustic Wall Assemblies
We quantify friction-fit fiberglass batts, mineral wool sound attenuation fire batts (SAFB), and unfaced acoustical blankets by wall stud depth (3-5/8", 6"), tracking linear wall runs and true partition heights up to floor decks.
Continuous Exterior Rigid Board (ci)
Exterior envelope takeoffs calculate continuous insulation (ci) boards—extruded polystyrene (XPS), foil-faced polyisocyanurate (polyiso), and high-density mineral wool boards—accounting for thermal bridge clips and penetrations.
Mechanical Duct Wrap & Acoustic Liner
We calculate external foil-scrim-kraft (FSK) fiberglass duct wrap square footage with stretch-out allowances around rectangular and round ductwork, plus interior acoustic duct liner for air handling noise attenuation.
Piping Insulation & Vapor Retarders
Mechanical pipe takeoffs measure linear footage grouped by pipe diameter and wall thickness: all-service jacket (ASJ) fiberglass for heating hot water, and elastomeric closed-cell foam for chilled water and refrigerant piping.

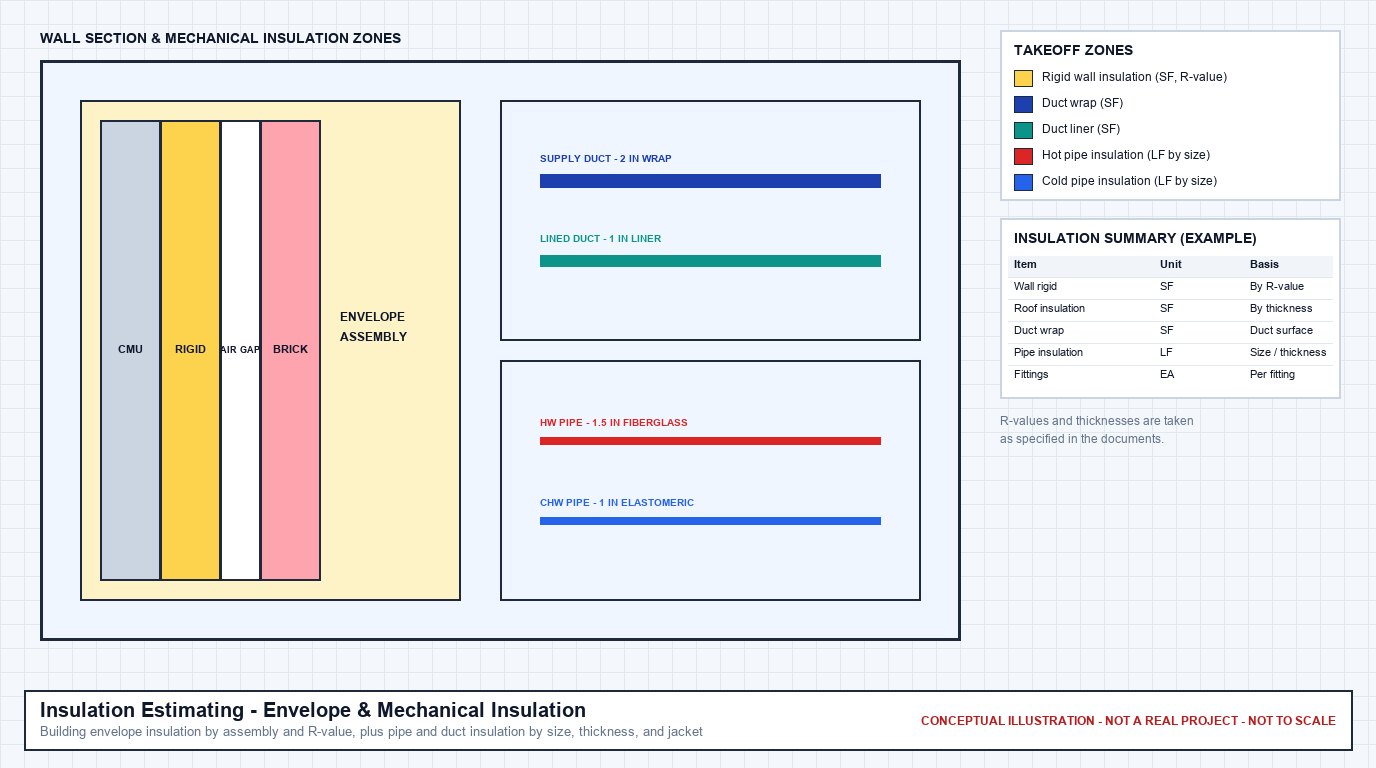

Example: Quantifying Insulation From a Wall Section
Auditing architectural envelope wall sections, mechanical riser schematics, and mechanical equipment schedules.
Comprehensive Insulation Scope Coverage
ConstructQuant itemizes commercial insulation scopes across healthcare campuses, educational complexes, logistics warehouses, and commercial high-rises.
Building Thermal Batt Insulation
- R-11, R-13, R-19, R-30 fiberglass batt assemblies
- Kraft-faced, foil-faced & unfaced thermal batts
- High-density batts for commercial steel stud spacing
- Underslab and perimeter foundation insulation
- Under-floor crawlspace & cantilevered slab insulation
- Mechanical fastener stick pins and impaling washers
Acoustic & Safing Insulation
- Mineral wool sound attenuation fire batts (SAFB)
- Acoustic partition sound batt insulation up to deck
- Edge-of-slab mineral wool perimeter fire safing
- Curtain wall spandrel safing with impaling pins
- Intumescent smoke and fire barrier perimeter sealants
- Acoustic baffling above open ceiling plenums
Rigid Board & Spray Foam
- Continuous exterior polyisocyanurate (polyiso) boards
- Extruded polystyrene (XPS) cavity drainage boards
- Expanded polystyrene (EPS) geofoam and wall sheets
- 2.0 lb/cu ft closed-cell spray polyurethane foam (ccSPF)
- Open-cell spray foam (ocSPF) for interior cavities
- Thermal barrier coatings (intumescent ignition barriers)
Mechanical Duct Insulation
- FSK-faced fiberglass blanket duct wrap (1.5" and 2" thickness)
- 1" and 2" internal flexible acoustic duct liner
- Weld pins, speed clips, and water-based duct adhesives
- Rigid fiberglass board insulation for exposed mechanical rooms
- Weatherproof embossed aluminum and VentureClad outer jackets
- Grease duct ceramic fire wrap (1-hour and 2-hour ASTM E2336)
Mechanical Pipe Insulation
- Preformed fiberglass pipe insulation with ASJ-SSL jacket
- Flexible closed-cell elastomeric tubing (chilled water & AC)
- Domestic hot, cold, and recirculation plumbing lines
- Chilled water, heating hot water & steam condensate piping
- Pre-molded PVC elbow, tee, and valve fitting covers
- Vapor-stop seals at hanger supports and wall penetrations
Mechanical Equipment Insulation
- Chiller barrel and water box elastomeric sheet insulation
- Boiler flue, breeching & exhaust stack high-temp insulation
- Heat exchanger removable thermal insulating blankets
- Domestic hot water storage tank jacketed wrap
- Air separator, suction diffuser & pump volute covers
- Stained or stucco-embossed aluminum equipment jacketing
Distinguishing Insulation from Neighboring Trades
Establishing clear scope lines prevents duplicate allowances and omissions across preconstruction bids.
Insulation vs. HVAC & Mechanical Contracting
HVAC equipment, duct fabrication, dampers, air handling units, and hydronic piping fall under CSI Division 23 (detailed on our HVAC Estimating Services page). Insulation estimating covers thermal duct wraps, acoustic internal liners, and pipe insulation jacketing applied to those mechanical systems. When mechanical contractors bid insulation as a subcontract package, our takeoff provides the standalone linear and square footage needed for buyout.
Insulation vs. Commercial Roofing Systems
Roof insulation boards (flat polyiso, tapered polyiso slope systems, cover boards) installed beneath TPO, EPDM, or modified bitumen membranes fall under CSI Division 07 50 00 (handled on our Roofing Estimating Services page). Insulation estimating under Division 07 21 00 covers attic blanket insulation, roof deck underside spray foam, exterior wall continuous insulation, and cavity batts.
Insulation vs. Drywall & Metal Framing (Division 09)
Metal studs, drywall boards, and level 4/5 taping belong to CSI Division 09 22 00 / 09 29 00 (covered on our Drywall Estimating Services page). While drywall subcontractors frequently install interior acoustic batts, our insulation takeoff isolates batt square footage and labor so the cost can be evaluated independently or rolled into drywall subcontract bids without ambiguity.
Practical Estimating Realities in Commercial Insulation
Critical factors that drive installer crew productivity, waste factors, and access equipment costs.
Duct Wrap Stretch-Out & Overlap Scrap Factors
Estimating external duct wrap by multiplying the sheet metal duct perimeter yields severe shortages. Applying a 2" thick fiberglass blanket requires a stretch-out allowance (adding up to 8" per perimeter turn) to accommodate insulation thickness around corners plus 2" facing staple flaps. Our takeoff incorporates genuine stretch-out geometry, increasing material coverage by 15% to 22% over nominal duct surface area.
Continuous Vapor Barrier Integrity on Chilled Water
Chilled water piping (operating between 42°F and 45°F) operates below ambient dew points. Any vapor barrier pinhole or unsealed butt joint creates catastrophic condensation and mold inside ceilings. Labor rates for chilled water require meticulous vapor-stop adhesives, insulated pipe hanger shields, and mastic sealing, which take nearly double the man-hours of standard hot water fiberglass jackets.
Lift Equipment & Overhead Plenum Congestion
Insulating ductwork and high-pressure steam lines at 18 to 24 feet above finished floor in commercial distribution centers or hospital corridors requires electric scissor lifts and rolling scaffolding. Furthermore, dense mechanical plenums packed with cable trays, fire sprinklers, and structural bracing sharply reduce daily installer linear-foot production rates.
Fire Safing at Floor Slab & Curtain Wall Transitions
Perimeter fire safing requires 4 pcf high-density mineral wool compressed at 25% to 33% between the edge of concrete slabs and exterior curtain wall spandrels, topped with elastomeric firestop spray. Our takeoff calculates linear feet of perimeter joint, gap width dimensions, and required pail quantities of UL-listed firestop coating to satisfy fire marshal inspections.
Standard Commercial Insulation Deliverables
ConstructQuant provides clean, standardized preconstruction documentation tailored for thermal envelope installers, mechanical insulators, and GC preconstruction teams.
1. Excel Estimate
Comprehensive cost workbook itemizing building thermal batts, continuous rigid board, spray foam, duct wrap/liner, pipe insulation, jacketing, accessories, and installer crew labor wages.
2. Excel Quantity Takeoff
Structured takeoff organized by building area, system type, R-value, thickness, square footage of wall/duct insulation, and linear footage of piping broken down by diameter.
3. PDF Markups
Color-coded architectural partition plans, wall sections, and mechanical duct/piping plans visually verifying every measured run, assembly type, and takeoff boundary.
4. Bid Summary
High-level commercial summary aggregating material costs, labor man-hours, lift equipment rentals, scrap factors, and suggested markup margins for bid day.
5. Scope / Assumptions
Clear technical scope notes documenting energy code R-value assumptions, fire safing thickness criteria, vapor barrier facing specs, and addenda reviewed.
Our 6-Step Insulation Estimating Workflow
A disciplined, repeatable methodology ensuring full thermal envelope and mechanical insulation compliance.
Plans/Documents
Intake architectural wall sections, exterior details, mechanical piping schematics, duct layouts, and project specifications.
Scope Review
Verify R-value requirements, IECC energy codes, jacket specifications (ASJ, FSK, aluminum), acoustic STC criteria, and addenda changes.
Quantity Takeoff
Calculate SF of batt insulation, rigid continuous insulation, duct wrap with stretch-outs, and LF of pipe insulation by diameter.
Pricing
Apply manufacturer material costs, vapor sealants, accessory pins, regional insulator labor rates, and lift equipment rental costs.
QA/QC
QA/QC review checking specified R-values, stretch-out formulas, pipe fitting allowances, and trade handoff lines.
Final Estimate Delivery
Deliver the final bid-ready Excel files, marked-up PDF takeoff drawings, executive bid summary, and scope assumptions document.
Commercial Insulation Estimating Inquiries
Common preconstruction and technical questions answered for trade subcontractors and general contractors.
Can you separate building envelope insulation from mechanical insulation?
Yes. In commercial construction, building envelope insulation (Division 07) and mechanical pipe/duct insulation (Divisions 22 and 23) are usually performed by different specialty subcontractors. Our takeoff structure separates architectural batts, rigid boards, and spray foam from mechanical duct wrap and pipe insulation, allowing individual trade subcontractors or general contractors to buy out packages independently.
How do you calculate pipe fittings and valves in pipe insulation takeoffs?
Pipe fittings (elbows, tees, reducers, strainers, and valves) require molded PVC fitting covers, pre-cut fiberglass inserts, or hand-mitered elastomeric foam. In our Excel takeoff, we itemize discrete fitting counts by pipe size and apply labor multiplication factors (typically adding equivalent linear footage per fitting) to ensure labor pricing reflects the time required to insulate complex valve stations.
What is your turnaround time for an insulation estimate?
Turnaround is project-dependent. Timelines depend on whether the scope is limited to architectural batts and exterior rigid board, or entails multi-story mechanical piping and congested mechanical room ductwork. We establish confirmed delivery milestones upon review of project plans.
Do you account for energy code compliance like IECC and ASHRAE 90.1?
Yes. We cross-reference architectural project specifications and energy compliance notes against the drawings. If a specification mandates R-20 continuous insulation (ci) on exterior walls or minimum 2" pipe insulation thickness on high-temperature heating hot water, we verify that drawings reflect those minimum code requirements and highlight any discrepancies in our Scope & Assumptions log.
Integrated Preconstruction Estimating Services
Connect commercial insulation estimates with adjacent mechanical, envelope, and finish trades.
HVAC Estimating
Mechanical sheet metal ductwork, mechanical equipment, and hydronic piping cost estimating.
Roofing Estimating
Commercial flat roof polyisocyanurate insulation taper systems and membrane assemblies.
Drywall Estimating
Interior partitions, acoustical sound batts, drywall assemblies, and ceiling framing takeoffs.
Quantity Takeoff
Detailed material measurement with color-coded plan audit trails across all CSI trade divisions.
Ready to Bid Your Next Commercial Insulation Package?
Submit your architectural wall sections, mechanical drawings, and insulation specifications to ConstructQuant. Receive a line-item takeoff and comprehensive cost model structured for competitive commercial bidding.
