Sitework Estimating Services
ConstructQuant delivers independent commercial sitework estimating services for site development contractors, asphalt paving specialists, and commercial general contractors across the United States. We analyze site demolition plans, geometric layouts, grading sections, and paving details to produce line-item takeoffs. Our estimates quantify clearing and grubbing acreage, pavement demolition, building pad fine grading, aggregate base stone, hot-mix asphalt tonnage, concrete curbs, sidewalks, and exterior site structures for bid-ready accuracy.
What Are Commercial Sitework Estimating Services?
Commercial sitework estimating is the systematic takeoff, quantification, and pricing of all exterior horizontal development scope surrounding a commercial building facility. Defined primarily in CSI Division 32 (Exterior Improvements) and Division 31 (Earthwork), sitework estimating encompasses site preparation, existing pavement demolition, fine grading of building pads and parking areas, crushed stone aggregate base courses, hot-mix asphalt paving, concrete curbs, gutters, accessible walkways, and exterior site concrete amenities.
Site Clearing & Demolition
Quantification of clearing and grubbing acreage, tree protection fencing, sawcutting of existing asphalt/concrete, pavement milling, curb removals, and abandoned pipe demolition.
Subgrade Prep & Aggregate Base
Measurement of building pad and parking subgrade fine grading (square yards), proof-rolling, and crushed aggregate base course (CAB / dense-graded stone) volumes and compacted tonnage.
Asphalt Paving & Curbs
Calculation of hot-mix asphalt (HMA) base and surface wearing courses by compacted thickness and tonnage, plus linear footage of extruded concrete curb and gutter assemblies.
Sidewalks & Site Concrete
Takeoffs for reinforced concrete pedestrian walkways, ADA ramps with detectable warning truncated dome tiles, dumpster enclosure slabs with bollards, and equipment pad foundations.

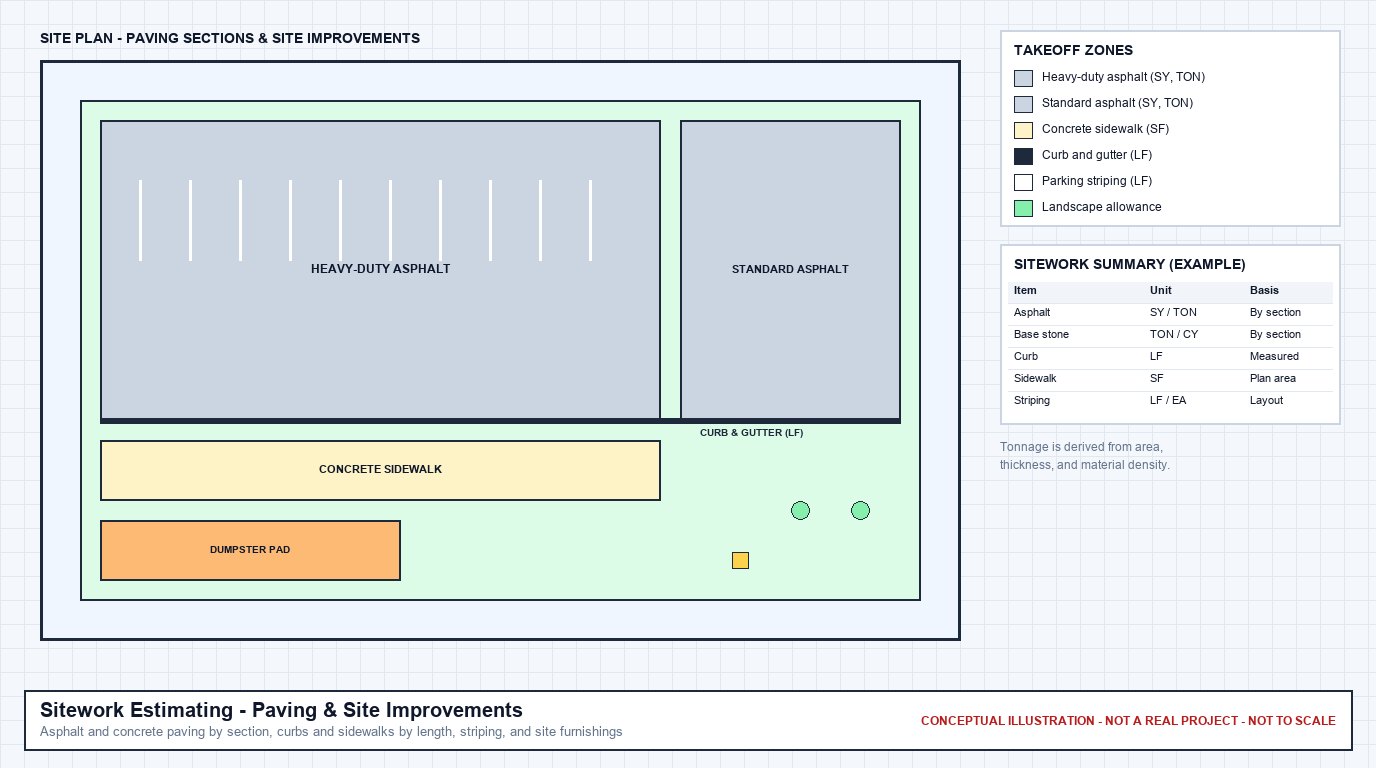

Example: Paving, Curb, and Striping Takeoff
Analyzing site development plans, crushed aggregate base courses, asphalt paving trains, and concrete curbs.
Comprehensive Commercial Sitework Scope Coverage
ConstructQuant itemizes complete exterior improvements across shopping centers, medical plazas, commercial office parks, and distribution centers.
Site Prep & Demolition
- Clearing and grubbing of vegetation and brush (acres)
- Tree removal (classified by caliper inch: 6"–12", 12"–24", 24"+)
- Asphalt pavement cold milling & sawcut removals
- Existing concrete curb, sidewalk & slab demolition
- Tree protection root-zone barricade fencing
- Temporary construction entrances & staging pads
Grading & Aggregate Base
- Building pad fine grading to +/- 0.1 ft tolerance
- Parking lot subgrade laser-guided motor grader prep
- Subgrade proof-rolling & geotextile separation fabric
- Crushed aggregate base course (4", 6", 8", 10" CAB)
- Recycled concrete crushed stone base options
- Base compaction, moisture conditioning & nuclear testing
Asphalt Paving Systems
- Light-duty automobile parking hot-mix asphalt (HMA)
- Heavy-duty truck access drives & loading dock paving
- Asphalt binder base courses & surface wearing courses
- Bituminous tack coat & prime coat applications
- Porous asphalt pavement sections where specified
- Pavement markings, striping, stencils & ADA stalls
Concrete Curbs & Gutters
- Standard 6" vertical barrier curb (slip-form & hand-form)
- Combination concrete curb and gutter (24" and 30" pan)
- Mountable / roll curbs for parking lot islands
- Depressed curbs at driveway entrances & ADA ramps
- Valley gutters and concrete drainage swales
- Expansion joints, contraction joints & dowel pins
Sidewalks & Site Flatwork
- 4" and 6" broom-finish concrete pedestrian sidewalks
- ADA accessible curb ramps with cast-in-place tactile tiles
- Decorative stamped, colored & exposed aggregate plazas
- Welded wire mesh (WWM) and synthetic fiber reinforcement
- Curing compounds, sealers & tooled control joints
- Pedestrian crosswalk safety islands & refuge areas
Site Structures & Allowances
- Dumpster enclosure concrete slabs & masonry walls
- Steel bollards (core-drilled or embedded with safety covers)
- Parking lot light pole concrete foundation pedestals
- Utility transformer pads & generator support slabs
- Yard drains, area drain boxes & slotted trench drains
- Topsoil respread (4"–6"), hydroseeding & sod allowances
Sitework vs. Earthwork, Excavation, and Utilities
Defining where sitework starts and ends ensures accurate bidding without duplication across specialized site packages.
Sitework Estimating vs. Earthwork Estimating
Sitework covers the full horizontal site development package from clearing to finished pavement (base stone, asphalt, curbs, sidewalks, site concrete). In contrast, Earthwork Estimating Services focuses strictly on 3D volumetric cut-and-fill modeling, mass grading balance, topsoil stripping depths, shrink/swell calculations, and soil import/export volumes.
Sitework Estimating vs. Excavation Operations
Sitework estimates the finished exterior assemblies and subgrade preparation. Excavation Estimating Services models the physical digging operations: basement mass cuts, foundation footing trenching, trench box shoring, equipment cycle times, rock removal, and off-site disposal hauling.
Sitework Estimating vs. Civil Utility Estimating
Sitework coordinates minor surface drainage (catch basins, trench drains, curb inlets). Dedicated trunkline storm sewers, sanitary sewer interceptors, water distribution loops, and municipal right-of-way connections are estimated under Civil Estimating Services and Utility Estimating Services.
Sitework Estimating vs. Building Concrete
Building foundation footings, interior grade beams, slab-on-grade floors, and structural elevated decks belong to CSI Division 03 (handled on our Concrete Estimating Services page). Sitework concrete strictly covers exterior flatwork, sidewalks, curbs, dumpster enclosure slabs, and transformer pads outside the 5-foot building perimeter line.
Practical Estimating Realities in Commercial Sitework
Critical factors that drive material yields, machine production rates, and competitive bid pricing.
Aggregate Base Compaction & Yield Factors
Estimating crushed stone aggregate base by simple geometric volume creates severe material deficits on bid day. A 6" compacted stone base requires approximately 1.35 to 1.45 tons per loose cubic yard, plus an additional 5% to 8% loss from stone embedding into softer subgrade clays during heavy vibratory roller passes. Our takeoffs account for true compacted stone densities and subgrade penetration losses.
Asphalt Tonnage Conversions & Minimum Plant Orders
Hot-mix asphalt is bid and purchased in tons, calculated using verified design unit weights (typically 110 to 115 lbs per square yard per inch of compacted thickness). Furthermore, asphalt plants enforce minimum run batching requirements and trucking cycle minimums. We calculate exact laydown tonnage and factor round-trip trucking cycles to reflect true installed costs.
Extruded Slip-Form vs. Hand-Form Curb Production
Curb installation labor varies drastically by installation method. Long, continuous perimeter parking lot runs placed using automated slip-form curb extrusion machines can achieve 1,200 to 1,800 linear feet per day. Conversely, tight landscape islands and radius turns requiring hand-forming with steel forms yield only 250 to 350 linear feet per day. Our takeoffs separate machine runs from hand-formed curbs.
ADA Cross-Slope & Truncated Dome Compliance
ADA compliance mandates maximum 2.0% cross-slopes and 8.33% ramp slopes. Deviations require costly tear-out and replacement by site contractors. Our takeoffs explicitly itemize cast-in-place detectable warning truncated dome composite tiles, transition curbs, and thickened ramp edges at every accessible route entry.
Standard Commercial Sitework Deliverables
ConstructQuant provides clean, standardized preconstruction documentation tailored for sitework subcontractors and general contractors.
1. Excel Estimate
Itemized cost workbook detailing clearing acreage, asphalt tonnage, aggregate base tons, curb linear feet, sidewalk square footage, equipment rentals, and crew labor.
2. Excel Quantity Takeoff
Comprehensive dimensional takeoff organized by area tag (parking lot, truck court, sidewalks), tabulating areas, thicknesses, lengths, and component counts.
3. PDF Markups
Color-coded site plan markups visually cross-referencing light-duty paving, heavy-duty paving, curb profiles, sidewalk runs, and demolition boundaries back to the takeoff schedule.
4. Bid Summary
Executive bid overview breaking down total paving tonnage, base rock investment, concrete curb investment, equipment operating hours, and suggested markup margins.
5. Scope / Assumptions
Clear technical narrative recording pavement section designs, asphalt density assumptions, curb forming methods, topsoil respread depths, and addenda reviewed.
Our 6-Step Sitework Estimating Workflow
A structured, repeatable procedure ensuring complete exterior scope coverage and pricing precision.
Plans/Documents
Intake demolition plans, geometric site layouts, grading profiles, paving sections, and exterior project details.
Scope Review
Verify pavement section thicknesses, base rock gradations, curb types, demolition scope, and addenda changes.
Quantity Takeoff
Measure clearing acreage, square yards of paving, tons of aggregate base and asphalt, and linear feet of concrete curbs.
Pricing
Apply asphalt plant mix prices, quarry aggregate costs, paving crew hourly wages, and equipment operating rates.
QA/QC
QA/QC review checking asphalt tonnage conversion formulas, aggregate compaction factors, and curb boundary terminations.
Final Estimate Delivery
Transmit final bid-ready Excel files, marked-up PDF site plans, executive bid summary, and scope assumptions document.
Commercial Sitework Estimating Inquiries
Common preconstruction and technical questions answered for sitework contractors and commercial builders.
How do you convert square yards of asphalt into purchasing tonnage?
Asphalt plants sell hot-mix asphalt strictly by the ton. We convert measured square yards of pavement using the project-specified compacted thickness and the mix design density (typically 110 to 115 lbs per square yard per inch of thickness). For example, 10,000 square yards of 2" surface course equates to approximately 1,125 tons of hot-mix asphalt, factoring in a standard 3% to 5% loss and laydown compaction tolerance.
Are landscape and irrigation scopes included in your sitework takeoff?
We include finish grading topsoil respread (4" to 6" depth), finish seed/sod allowances, and PVC sleeve conduits under parking lots when they are designated as part of the prime sitework contractor's contract. We do not provide detailed horticultural nursery plant takeoffs, which belong to specialized landscape trade packages.
What is your turnaround time for a commercial sitework estimate?
Turnaround is project-dependent. Timelines depend on site acreage, demolition complexity, whether both light-duty and heavy-duty pavement designs exist, and the extent of site concrete flatwork. We establish confirmed delivery milestones upon review of project plans.
How do you differentiate building slab concrete from exterior site concrete?
Exterior site concrete (sidewalks, curbs, dumpster enclosure slabs, light pole bases, transformer pads) is strictly segregated from building foundation concrete and interior floor slabs. Exterior sitework concrete terminates 5 feet outside the building perimeter wall line, ensuring no duplication with building concrete trade bids.
Integrated Preconstruction Estimating Services
Coordinate commercial sitework takeoffs with related earthwork, civil infrastructure, and concrete packages.
Earthwork Estimating
3D surface cut-and-fill modeling, digital terrain balance, topsoil stripping, and soil import/export volumes.
Civil Estimating
Comprehensive civil infrastructure, storm drainage networks, sanitary sewer trunklines, and water mains.
Concrete Estimating
Commercial foundation footings, grade beams, interior slab-on-grade floors, and structural decks.
Construction Estimating
Turnkey preconstruction cost modeling, quantity takeoffs, and trade package coordination across all CSI divisions.
Ready to Bid Your Next Commercial Sitework Package?
Submit your site development plans, paving profiles, and exterior details to ConstructQuant. Receive a line-item sitework takeoff and cost model structured for competitive commercial bidding.
